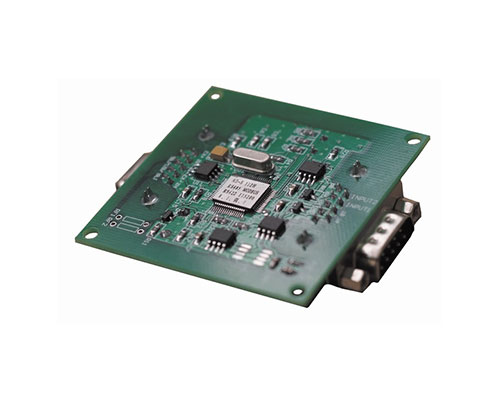

AD-S112H Modules

? ? Applicable to weighing-in-motion(WIM) with high precision demand, for example, belt weigher, vehicle weighing on highway, etc.

? ? Features and Specifications：

?★? HardwareInterface: RS-422 / RS-485 interface (opt.)

?★? Software Protocol:? SeTAQ Free / Modbus RTU protocol (opt.)

?★? Highest sampling speed: 400Hz

?★? Temperature coefficient：≤5ppm／℃（typical）

?★? Dimensions（mm）：Rectangle：60×60×15

?★? A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;

?★? All the parameters can be set through serialinterface;

?★? Module addresses are availablefrom 0 to 31. Modules can work through bus communication;

?★? Baud rate,parity bit and data output format can be set. 1200～115200bps;

?★? Storage ofthe parameters with protection against power failure;

?★? Aluminum alloy enclosure

?★? Two switch signal inputs(opt.)

?★? OperatingVoltage: 9V DC(6.5V～12V); Operating Current:≤40mA;

?★? Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression;

?★? Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
