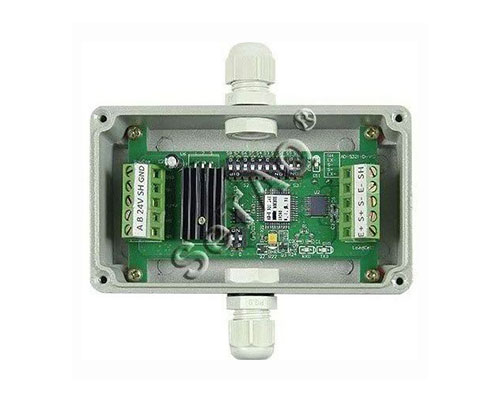

AD-S321/324-II Modules (Discontinued)

? ??

? ? For the manufacture of digital load cells, weighing indicators, process control weighing instruments, tensile testing machine, and other weighing or force measuring occasions.

? ? Features and Specifications：

★ OperatingVoltage: 24V DC ;

★? Measuring range: ±15mV? ?

★? A/D Resolution:1000000? ??

★? Temperature coefficient：≤5ppm／℃（typical）? ??

★ HardwareInterface: RS-485interface, half-duplex.? ??

★ Software Protocol: SeTAQ Freeport / Modbus RTU?

★? Dimensions（mm）：Rectangle：86×55×18? ??

★ A/D conversion,digital calibration, tare, zero setting/tracking, switch-on zero setting,anti-dithering;? ??

★? All the parameters can be set through serialinterface;? ??

★? Module addresses are availablefrom 0 to 31. Modules can work through bus communication;? ??

★ Baud rate,parity bit and data output format can be set. 1200～38400bps;? ??

★? Digital filtering: standard filtering or LPF;? ??

★ Samplingspeed: 3.125～400Hz;? ??

★ Storage ofthe parameters with protection against power failure;? ??

★? Operating Current:≤40mA;

★ Complete protection: wrong wiring protection, overvoltage protection, transient voltage suppression;? ??

★ Operating temperature range: -40℃～+70℃; Storage temperature range: -60℃～+90℃
